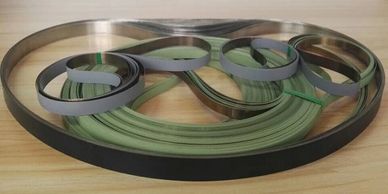

PTFE COATED STEEL BELTS
Steel Belts for Laminated Tube Machinery
Inner and External Belts welding Laminated Tubes
Inner and External Belts welding Laminated Tubes
The PTFE coating gives many advantages, such as non-sticking, wear resistance, corrosion resistance, high-temperature durability, low-temperature durability, etc. It can work between temperature range -190°C~320°C. As long as the PTFE is coated on the steel belt surface, it can be applied to the continuous production of some sticky products. In this way, the product can be easily separated from the mold.
Inner and External Belts welding Laminated Tubes
Inner and External Belts welding Laminated Tubes
Inner and External Belts welding Laminated Tubes
The PTFE coating serves in various colors such as black, green, brown, and white. The liquid PTFE paint can be sprayed and sintered on the surface of the steel belt. The coating thickness is from 0.01mm to 0.025mm. With the help of great spraying, sintering, and precise control of humidity and temperature, the adhesion of the coating can be excellent. The PTFE-coated steel belts can be used for heat sealing of ABL & PBL laminated tubes, plastic bags, solar cell welding, image checking, etc.
Specifications
Inner and External Belts welding Laminated Tubes
Specifications
Color: Black, Green, Brown, White
Material: SUS301, SUS304, SUS316, 17-7PH, 15-7PH
Thickness: 0.05~1.0mm
Width: 3~600mm
Hardness: HV360~HV480
Tensile Strength:1000~1700N/ mm2
Edge Camber:<=2mm/10,000mm
Edge Status: Well-rounded

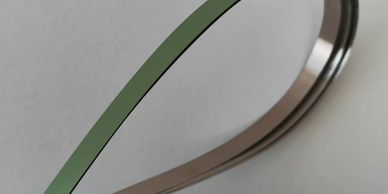

CERAMIC COATED STEEL BELTS
Features of ceramic coated steel belts
Features of ceramic coated steel belts
Features of ceramic coated steel belts
Its high-temperature resistance is more than 400°C, and its long-term service temperature range is - 200 ~ 300°C. At the same time, it has good anti-viscosity and good adhesion with the surface of the steel belt, so it can be coated on the surface of the steel belt to produce some products with strong viscosity, such as ABL& PBL tubes.
Specifications
Features of ceramic coated steel belts
Features of ceramic coated steel belts
- Material: SUS301, SUS304, 17-7PH, 15-7PH
- Thickness:0.05~0.2mm
- Width:3~20mm
- Hardness: HV360~HV480
- Tensile Strength: 1000~1700N/ mm2
- Edge Camber: <=2mm/10,000mm
- Edge Status: Well-rounded
